SBC-SAM9G20 | Atmel AT91SAM9G20 Single Board Computer
$159USD

SBC-SAM9G20 Features

  • Working Temperature: -40 to +85 Celsius
  • Atmel AT91SAM9G20 ARM926EJ processor, up to 400Mhz
  • 64MB SDRAM + 256MB Nand Flash + 2Kbit EEPROM
  • 6 Serial ports, support 1 RS485
  • 2 USB Host, Ethernet, SD card, SPI, IIC, System Bus.
  • Support Linux 2.6.30 system(Telnet, NFS, TCP/IP support)
  • Industrial standard: -40 ° C ~ +85 ° C

Related Resource for SBC-SAM9G20

Product Infomation Order Infomation

Product Infomation

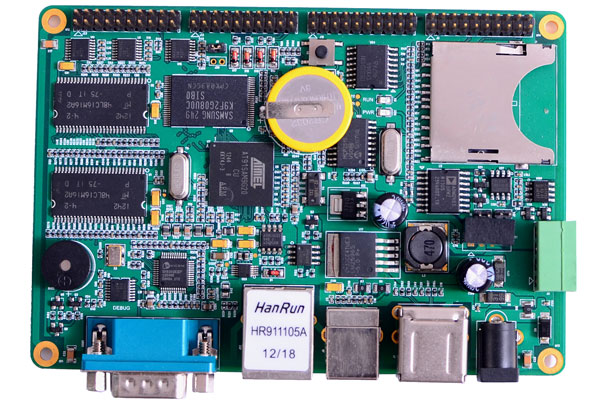

 The SBC-SAM9G20 Single Board Computer is a high-performance controller board introduced by CoreWind. It is designed based on the AT91SAM9G20 microcontroller, 64MByte SDRAM, 256MByte Nand Flash, 2Kbit EEPROM, UART, Ethernet, USB HOST, RTC on board.

CoreWind also offers a complete software development package to customers. The board supports linux 2.6.30 operating system and is provided with complete basic drivers which enable a quick channel to evaluate the Atmel AT91SAM9G20 processor and customize application software. It would be an ideal development platform for multimedia and communication applications.

HardWare

CPU: Atmel AT91SAM9G20 ARM926EJ Core Microprocessor
RAM: 64MB RAM
Flash: 256MB Nand FLash
Support Buzzer
TTL Serial port: 5 TTL serial port
RS232 Serial port: 1 RS232
RS485 Serial port: One RS485 serial port
Ethernet: One 10/100Mbps Ethernet port (RJ45)
USB port: Two High-speed USB 2.0 Host port, 480Mbps
SD card slot: One SDHC card interface(Hot plug-and-play)
CAN BUS: 1 CAN bus 2.0
JTAG interface
GPIO: 6 GPIO, 1 PWM, 4 ADC, IIC, SPI
LED: 1 x Power LED,1 x System LED
Button: 1 x Reset KEY
Mechanical Parameters

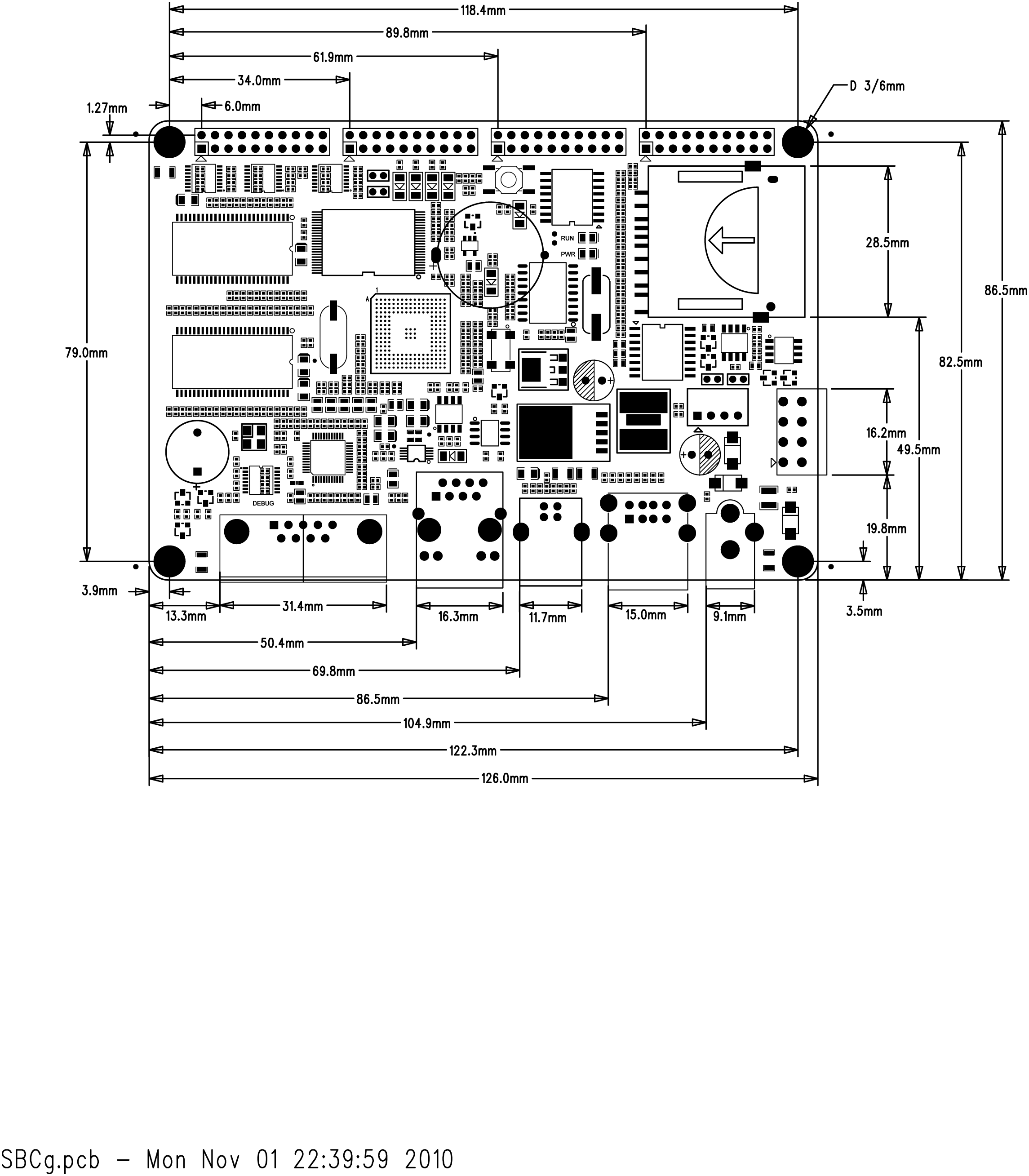

Dimensions:126mm x 86.5mm, 6 layer
Power Input Voltage: 12V
Temperature Range: -40 ℃ ~ 85 ℃
Humidity Range: 20% ~ 90%

 Software

Support Linux 2.6.30 System
LED driver
USB Host
NET: Ethernet, TCP/IP, Telnet
Serial port driver, RS485/RS232 Driver
Yaffs filesystem

Applications

Industrial control
Field Communication

Download

Name Format Size Update Date-Version
SBC-SAM9G20 Overview   pdf  1.7MB  2011-11-5
SBC-SAM9G20 Getting Start pdf 1.7MB 2011-11-5
SBC-SAM9G20 Reference Guide pdf 1.7MB 2011-11-5

SBC-SAM9G20 dimensions pdf 100KB 2011-11-6
SBC-SAM9G20 Schematic pdf 100KB 2011-11-6

Order Infomation

Order By paypal

Product package include
  • One SBC-SAM9G20 Board
  • One net cable
  • One Serial cable
  • One 12V@2A Power adapter
  • DVD for system image
  • Item Price Buy Now
    SBC-SAM9G20-TTL Single Board $159USD
    SBC-SAM9G20-RS232 Single Board $169USD

    Order By Bank T/T

    • If you would like to Order by Bank T/T, send your needs to us through e-mail(Our mail: market@armdevs.com), When we get your needs mail, then we will send the invoice file(Contain our Bank T/T account) to you in 12 hours, then you can pay it buy bank T/T.
    • Of course, you can submit your mail with the follow Form, then we will contact you in 12 Hours.
      Your Email:
    .

    Contact&Service

    Contact Us
    Tel: +86-755-29638421
    Sales Mail: market@armdevs.com
    Support: support@armdevs.com
    MSN: armdevs@hotmail.com
    Customer Design Service
    CoreWind also offers customer design service based on the SBC-SAM9G20  board according to customer’s requirement. Whether you need to reduce, add or modify to existing hardware, CoreWind will help customers with expert competence and rich experience.
