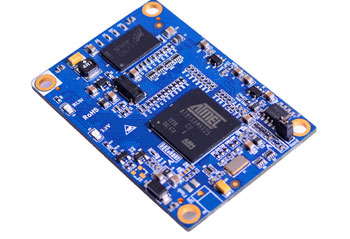

CM-SAM9X25 | Atmel AT91SAM9X25 CPU Board
| Processor: | ARM9 @ 400Mhz on Atmel AT91SAM9X25 |
|---|---|
| RAM Size: | 128MB DDR2 |
| Nand Flash: | 256MB Nand Flash |
| Interface: | Two Ethernet, Two USB Host, USB Device, CAN BUS 2.0, SDIO SD card, UART, SPI, 2x I2C, GPIO, A/D, Watchdog, RTC |
| System: | Linux system |
| Board size: | 57mm x 39mm |
|
$89
Buy Now
|
CoreWind CM-SAM9X25 processor card is a compact ARM embedded controller based on 400MHz Atmel AT91SAM9X25 ARM 926EJ-S microcontroller which is designed to provide a high performance processor solution with a high flexibility for general and multimedia oriented applications.
The CM-SAM9X25 processor card has external 128MB DDR2 SDRAM, 256MB Nand Flash and 4Kbit EEPROM on board and many peripherals like UART, Ethernet, USB, SDIO, JTAG, CAN, Soft Modem, SPI and all IOs are brought out by two B-To-B 100Pins connector female headers which is convenient and flexible for customer’s secondary development work.
CoreWind also designed one expansion boards to bring out connectors for implementing and extending the functions of CM-SAM9X25. The boards are called NET-SAM9X25 single board computers. CoreWind offers Linux 2.6.39 for the boards. They are high-performance single board computer for industrial needs.
HardWare
Dimensions: 57*39mm, 8 layer
Working Temperature: -40 to +85 Celsius
Atmel AT91SAM9X25 ARM926EJ-S Core Microprocessor
32 KBytes Data Cache, 32 KBytes Instruction Cache, MMUOne 32-kbyte internal SRAM and One 64-kbyte internal ROMWork at up to 400MHzExternal Memory
128MByte DDR2 RAM256MByte NAND Flash4Kbit EEPROMTwo system working status LED
Two 100Pin B-To-B connector extend more interface from CPU
UART, Two Ethernet, USB Host/Device, CANSPI, TWI, SDIO, PWM, JTAG and all IOsAdapter mother board: NET-SAM9X25 Single board computer
SoftWare
Supports for Linux 2.6.30 operating systems
Applications
Industrial controlField Communication
