WiFi-W10 | RTL8188EUS USB Wireless Wifi Module for MID
  • Use Realtek RTL8188CUS chips
  • 802.11e-compatible bursting and I standards
  • Operates in 2.4 GHz frequency bands
  • USB2.0 interface
  • BPSK, QPSK, 16 QAM, 64 QAM modulation schemes
  • WEP, TKIP, and AES, WPA, WPA2 hardware encryption schemes
  • Data rates: up to 150Mbps

$4    Buy Now

HLF-W10 product is 150 wireless USB adapter which has lower power consumption, high linearity output power, accords with IEEE802.11B/G/N, and supports IEEE802.11i safety protocol, along with IEEE 802.11e standard service quality. It connects with other wireless device which accorded with these standards together, supports the new data encryption on 64/128 bit WEP and safety mechanism on WPA-PSK/WPA2-PSK, WPA/WPA2.Its wireless transmitting rate rises 150M, equivalent to 10 times of common 11b product. The inner AI high gain ceramics antenna adapts different kinds of work environment. It is easy and convenient to link to wireless network for the users using desktop, laptop and other device that needs connect to wireless network.

Features

  • Module Model: HLF-W10
  • Product name: WLAN 11n USB module
  • The main chip: Realtek RTL8188CUS
  • Supported protocols and standards: IEEE 802.11n / b / g, 802.3,802.3u
  • Frequency range: 2.4 ~ 2.4835 GHz ISM Band
  • Spread Spectrum Technology: DSSS (Direct Sequence Spread Spectrum)
  • Operating modes: centralized control type (Infrastructure), peer to peer (Ad-Hoc)
  • Transfer rate: 1,2,5.5,6,11,12,18,22,24,30,36,48,54,60, 90,120 and maximum 150Mbps
  • Operating voltage: DC 3.3V (DC 3.3V)
  • Working current: 95 ~ 140mA
  • Interface Type: USB2.0
  • Modulation: OFDM / DBPSK / DQPSK / CCK
  • Working channels: 14
  • Transmitting power: <13dBm @ 11n, <18dBm @ 11b, <14dBm @ 11g
  • Receiving sensitivity: 11Mbps: -86dBm @ 8%
  • 54Mbps: -73dBm @ 10%
  • 130Mbps: -66dBm @ 10%
  • Support system: Windows2000 / XP / Vista / Windows 7 / LINUX / WIN CE / MAC OS / Android ......
  • Antenna Connection: Connecting an external antenna via half hole
  • RF input impedance: 50 Ω
  • Transmission distance: 100 meters farthest indoor and outdoor up to 300 meters (depends on the environments)
  • Module size: 13.0 * 12.2 * 1.8 mm (L x W x H)
  • Technology: Lead
  • Operational temperature: -20 to 85°C

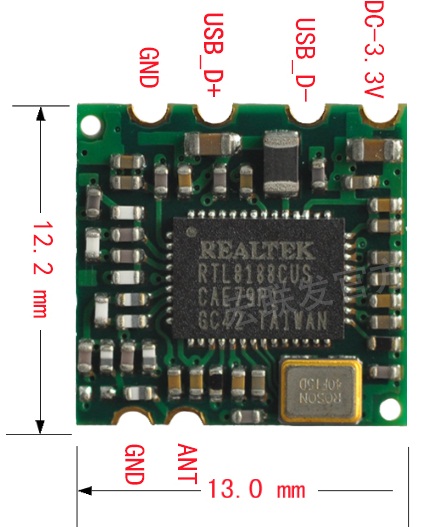

Interface

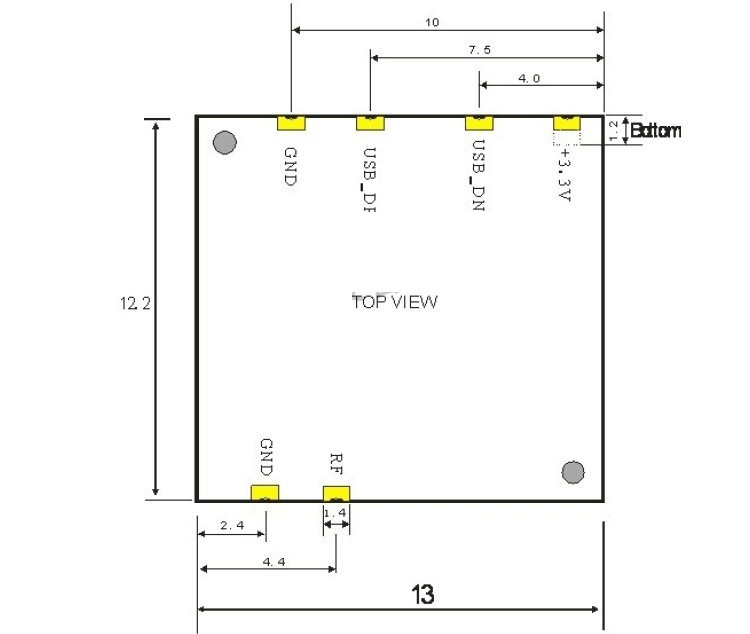

Mechanical Dimensions

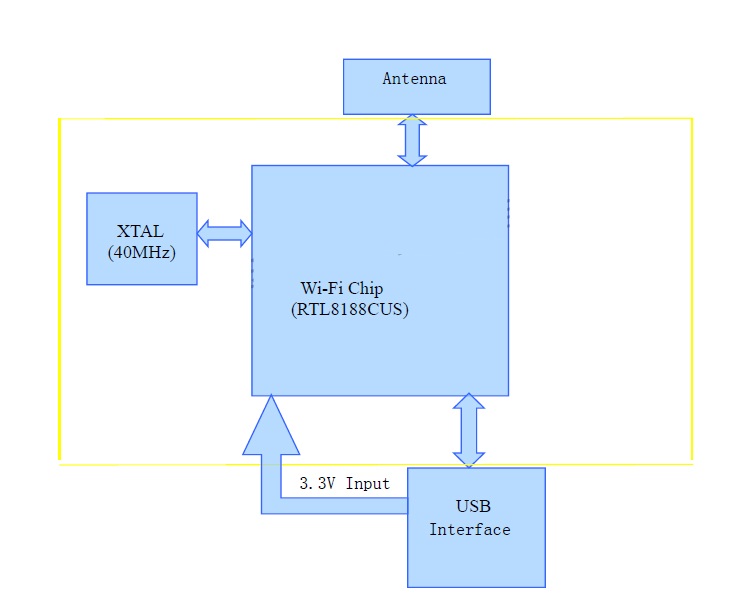

Block Diagram

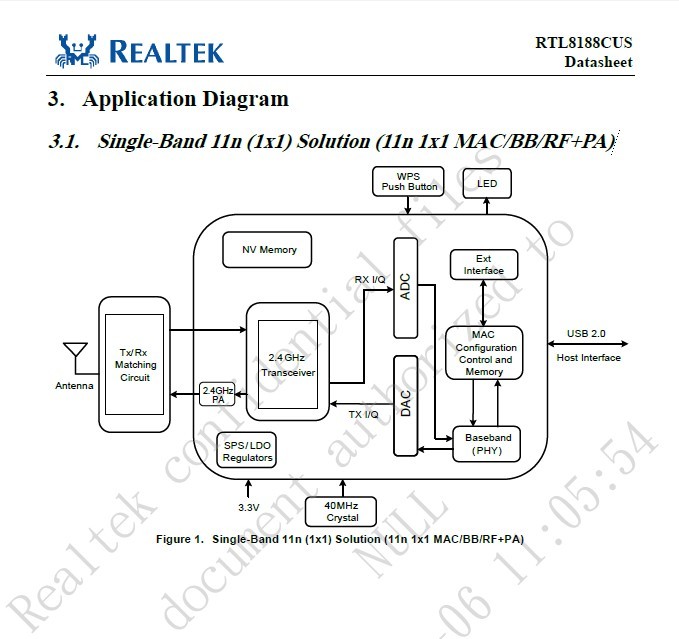

Application Diagram
