NET-SAM9X25 | Atmel AT91SAM9X25 Single Board
Processor: ARM9 @ 400Mhz on Atmel AT91SAM9X25
RAM Size: 128MB DDR2
Nand Flash: 256MB Nand Flash
Interface: Two Ethernet, Two USB Host, USB Device, CAN BUS 2.0, SDIO SD card, UART, SPI, 2x I2C, GPIO, A/D, Watchdog, RTC
System: Linux system
Board size: 115mm x 74mm

$99    Buy Now

The NET-SAM9X25 Single Board Computer is a high-performance controller board. It is designed based on the CM-SAM9X25 processor card which integrates an AT91SAM9X25 microcontroller, 128MByte DDR2 SDRAM, 256MByte Nand Flash, 4Kbit EEPROM, UART, Ethernet, USB HOST, on board. It is connected with NET-SAM9X25 expansion board through two 100pin B-T-B expansion interfaces.

CoreWind also offers a complete software development package to customers. The board supports linux 2.6.39 operating system and is provided with complete basic drivers which enable a quick channel to evaluate the Atmel AT91SAM9X25 processor and customize application software. It would be an ideal development platform for multimedia and communication applications.


CPU Board:CM-SAM9X25

  • Dimensions: 57*39mm, 8 layer
  • Working Temperature: -40 to +85 Celsius
  • Atmel AT91SAM9X25 ARM926EJ-S Core Microprocessor
  • 128MByte DDR2 RAM, 256MByte Flash, 4kbit EEPROM
  • Two 100Pin connector extend more function
  • Expand two Ethernet, Two CAN Bus, Serial port
  • Software Modem,USB Host/Device, SDIO, TWI, SPI
Mechanical Parameters
  • Dimensions:115*74mm
  • Power Input Voltage: 12V
  • Temperature Range: -40 ℃ ~ 85 ℃
  • Humidity Range: 20% ~ 90%

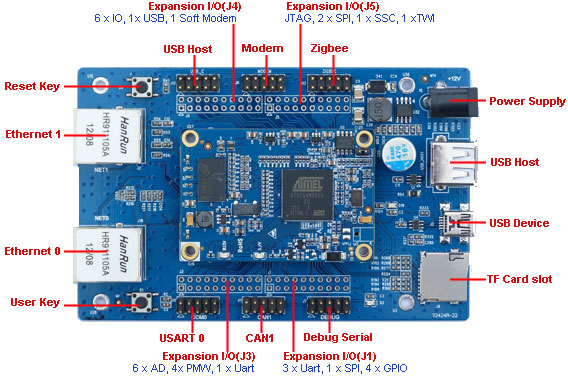

Data Transfer Interface
  • Serial port
  • DEBUG: One 3-wire TTL Debug serial port(provide TTL_RS232 module)
  • COM0: One 5-wire TTL serial port, Support extend RS232/RS485 Module
  • Ethernet: Two 10/100Mbps Ethernet port (RJ45)
  • USB port:
  • Two High-speed USB 2.0 Host port, 480Mbps
  • One High-speed USB 2.0 Device port, 480Mbps
  • TF card slot: One TF card interface(Hot plug-and-play)
  • Zigbee interface
  • Soft Modem interface
  • Expansion Interface
  • J1:3 x Uart, 1 x SPI, 4 x GPIO
  • J3: 6 x AD, 4 x PWM, 1 x Uart
  • J4: 6 x IO, 1 x USB, 1 Soft Modem
  • J5: JTAG, 2 x SPI, 1 x SSC, 1 x TWI
  • Input Interface
  • 1 LED: 1 x Power LED
  • 2 Button: 1 x Reset KEY, 1 User Key


  • Support Linux 2.6.39 System
  • UBI Filesystem
  • CAN bus driver
  • Ethernet Driver, Telnet, TCP/IP
  • USB Host, Soft Modem


  • Industrial control
  • Field Communication
