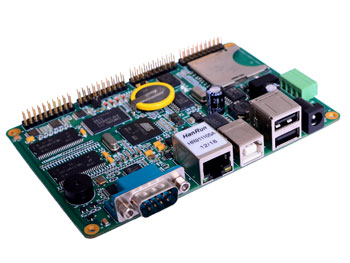

SBC-SAM9G20 | Atmel AT91SAM9G20 Single Board Computer
| Processor: | ARM9 @ 400Mhz on Atmel AT91SAM9G20 |
|---|---|
| RAM Size: | 64MB SDRAM |
| Nand Flash: | 256MB Nand Flash |
| Interface: | One Ethernet, USB Host, USB Device, TFT LCD, Touchscreen, Watchdog, RTC, RS485, SD card |
| System: | Linux system |
| Board size: | 126mm x 86.5mm |
|
$159
Buy Now
|
The SBC-SAM9G20 Single Board Computer is a high-performance controller board introduced by CoreWind. It is designed based on the AT91SAM9G20 microcontroller, 64MByte SDRAM, 256MByte Nand Flash, 2Kbit EEPROM, UART, Ethernet, USB HOST, RTC on board.
CoreWind also offers a complete software development package to customers. The board supports linux 2.6.30 operating system and is provided with complete basic drivers which enable a quick channel to evaluate the Atmel AT91SAM9G20 processor and customize application software. It would be an ideal development platform for multimedia and communication applications.HardWare
CPU: Atmel AT91SAM9G20 ARM926EJ Core MicroprocessorRAM: 64MB RAMFlash: 256MB Nand FLashSupport BuzzerTTL Serial port: 5 TTL serial portRS232 Serial port: 1 RS232RS485 Serial port: One RS485 serial portEthernet: One 10/100Mbps Ethernet port (RJ45)USB port: Two High-speed USB 2.0 Host port, 480MbpsSD card slot: One SDHC card interface(Hot plug-and-play)CAN BUS: 1 CAN bus 2.0JTAG interfaceGPIO: 6 GPIO, 1 PWM, 4 ADC, IIC, SPILED: 1 x Power LED,1 x System LEDButton: 1 x Reset KEYMechanical ParametersDimensions:126mm x 86.5mm, 6 layerPower Input Voltage: 12VTemperature Range: -40 ℃ ~ 85 ℃Humidity Range: 20% ~ 90%
Software
Support Linux 2.6.30 SystemLED driverUSB HostNET: Ethernet, TCP/IP, TelnetSerial port driver, RS485/RS232 DriverYaffs filesystemApplications
Industrial controlField Communication
