Core6410 | Samsung S3C6410 ARM11 cpu board
  • ARM11 Samsung S3C6410, ARM1176JZF-S, up to 667MHz
  • 256MByte mDDR RAM and 1GByte NAND Flash
  • Audio chips integrated in CPU board
  • 100M Ethernet, DM9000 chips
  • Support Wince 6.0, Linux 2.6, Android 2.3
  • 170pin expansion interfaces(QFP package)


$79    Buy Now

Features

  • ARM11 Samsung S3C6410, ARM1176JZF-S, up to 667MHz
  • 256MByte mDDR RAM and 1GByte NAND Flash
  • Audio chips integrated in CPU board
  • 100M Ethernet, DM9000 chips
  • Support Wince 6.0, Linux 2.6, Android 2.3
  • 170pin expansion interfaces(QFP package)

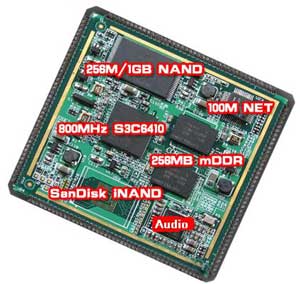

Core6410 processor card is designed specially to be the heart of your next embedded design. The tiny board integrates Samsung S3C6410 processor (ARM1176JZF-S, up to 800MHz). The processor card takes use of all common features of S3C6410 and the interface between the processor card and your carrierboard is through 170-pin expansion interfaces(QFP package). The  Net and audio chip is integrated into the core board. The Audio, Net, USB, LCD, I/O and all other hardware interfaces are all expanded via these interfaces.



Integration of the CoreWind Core6410 processor card to customer special design is fully supported by CoreWind technologies. CoreWind also designed an expansion board which can fully evaluate Core6410. The whole system is called Real6410. CoreWind offers Linux 2.6.28, WinCE6.0, Android2.1 BSP for this board. Customers can leverage our experience to increase your own productivity. The optimal embedded microprocessor solution provides users with a flexible development environment based on S3C6410 and a shortened development timeframe.



Specification
 System
ARM11 Samsung S3C6410, ARM1176JZF-S, up to 667MHz
256MByte MoblieDDR, 266MHz
1GByte NAND Flash(support 8GByte NAND Flash)
170pin expansion interfaces(QFP package)
 Timer & Clock
On chip watch-dog timer
 Network
10/100M Ethernet, DM9000 chips
 Video&Audio
Audio In/Out: WM9713 chips on cpu board


  Multi-IO
The modular is led out most signals of ARM11 S3C6410, like Matrix Keypad, USB OTG, USB HOST,  SDIO, LCD, Touch Screen, Camera, AC97, UART, SPI, I2C, ADC, DAC, PWM, EXT INT, GPIO and so on.
Mechanical
Dimensions:  60 x 60 x 2.8 mm, 8 layer
Temperature: 0°C to 70° C
Power supply: 3.7V - 6.5V
OS support
Support Wince 6.0, Linux2.6 and Android 2.3
Resource

 Core6410 Processor Card Overview
